- Highly resistant to wear and deformation.
- Ideal for cleaning and surface preparation.
- Can be recycled multiple times.

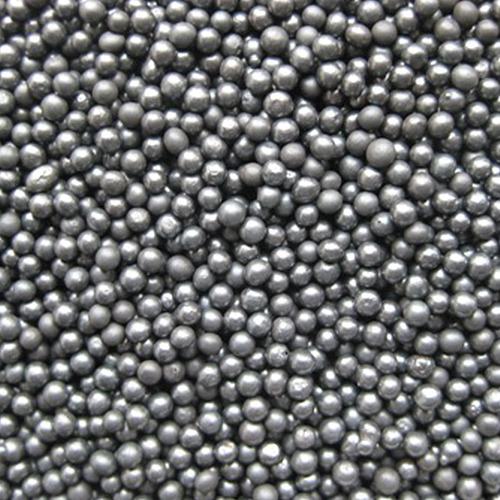

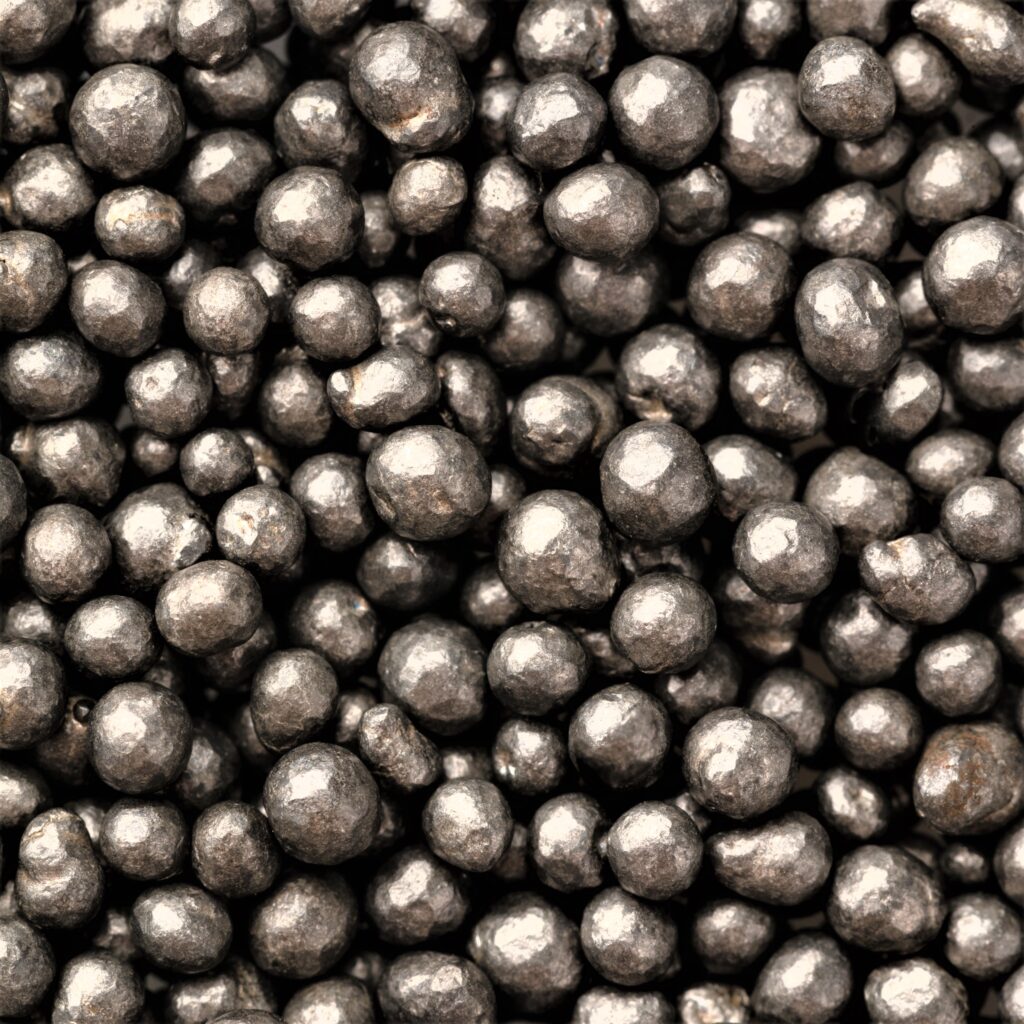

HIGH-CARBON STEEL SHOT
Quenched and tempered high-carbon steel shot for general blasting operations, characterized by high resilience and superior rebounding properties.
Removes rust, scale, and paint from metal surfaces.
Enhances the fatigue strength of metal components.
Smoothens edges and removes burrs from machined parts.
Prepares surfaces for coating or painting.
PRODUCT Features
SHOT
SHAPE
CHEMICAL COMPOSITION
HARDNESS
DENSITY
CONDUCTIVITY
MOCRISTRUCTURE X 500
Round
%C O,8-1,2 %Si 0,4 min %S<0,05 %P<0,05
390-s30 HV (40-5r HRC)
s40-61 o HV (52-56 HRC)
620-700 HV (56-60 HRC)
Absolute
≥7 g/cm³
< 30 μs/cm
Tempered mar(ens:le with <-I57.
of residual austenite
SPECIALTY PRODUCTS
STELUX C
A l6%Cr – l,5%Ni stainless
steel shot.
STELUX CN
A I Bolocr – B%Ni stainless
steel shot.
Know More About Our High-Quality Steel Shot and Grit Products
GP GRIT
GP hardness grit typically used rn cleaning and descaling operations, it roundsup rapidly after few working cycles for an optimum balance between cleaning efficiency and machine wear.
GL GRIT
GL hardness grit typically used in surface preparation and descaling operations, its sharp edges get progressively smoothened during service, leading to higher efficiency
than GP grit
GH GRIT
GH hardness grit typically used in air blasting operations, it keeps its sharp edges
along its whole service life, ensuring sharp surface profiles and uniform, etched surface finish

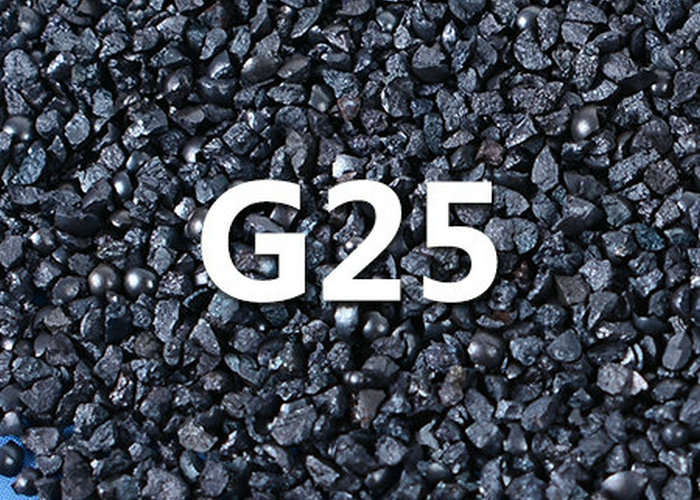

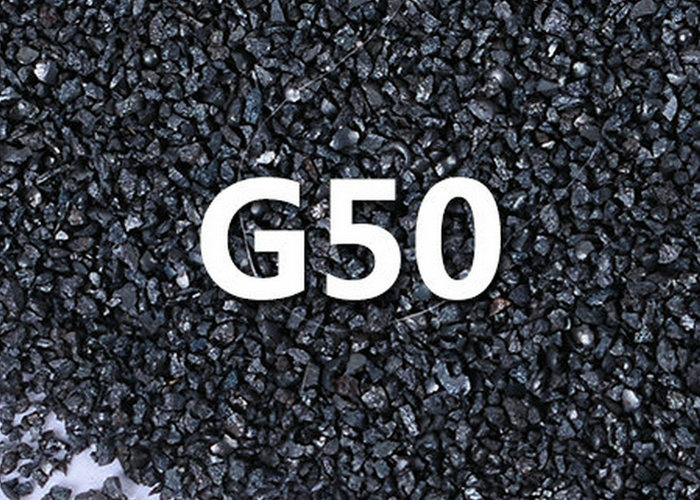

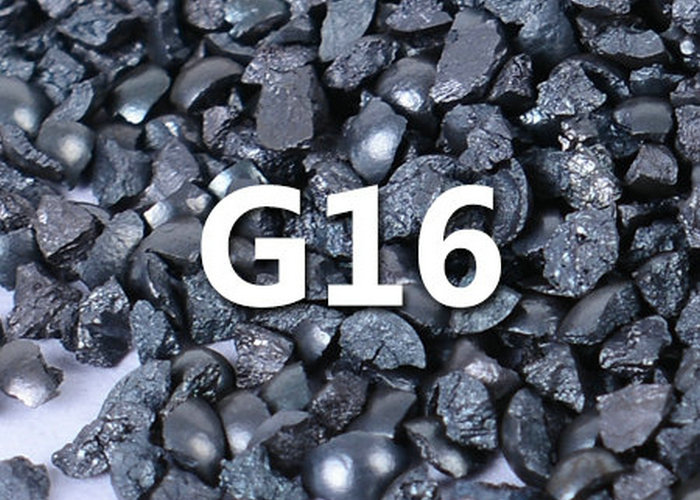

HIGH-CARBON STEEL GRIT
Quenched and tempered high-carbon steel grit for general blasting
operations, available under 3 hardness levels.
Cleans and prepares metal surfaces.
Strips old paint layers effectively.
Creates a rough texture for better coating adhesion.
Removes scale and impurities from steel products
PRODUCT Features
GRIT
SHAPE
CHEMICAL COMPOSITION
HARDNESS
DENSITY
CONDUCTIVITY
MOCRISTRUCTURE X 500
Angular
%Mn O,35-1,2 S070 and S1 10 %Mn O,5- 1 ,2 for S1 70 %Mn O,6-1,2 for S230 and above, all grit sizes
GP: 390-530 (40-s1 HRC)
GL: 580-720 (54-61 HRC)
GH:≥700 (≥60 HRC)
Apparent
≥4 g/cm³
< 30 μs/cm
As-quenched
martensite
SPECIALTY PRODUCTS
STELUX CG
A 307″ high chromium cast iron grit.
AMS
A cast steel shot for peening operations
in military and aerospace industries (fully
meet AMS 2431 as well as many other
proprietary standards).
CUT WIRE PELLETS
A high-durability conditioned cut-wire for
shot-peening operations, manufactured by Toyo Seiko company in Japan.
